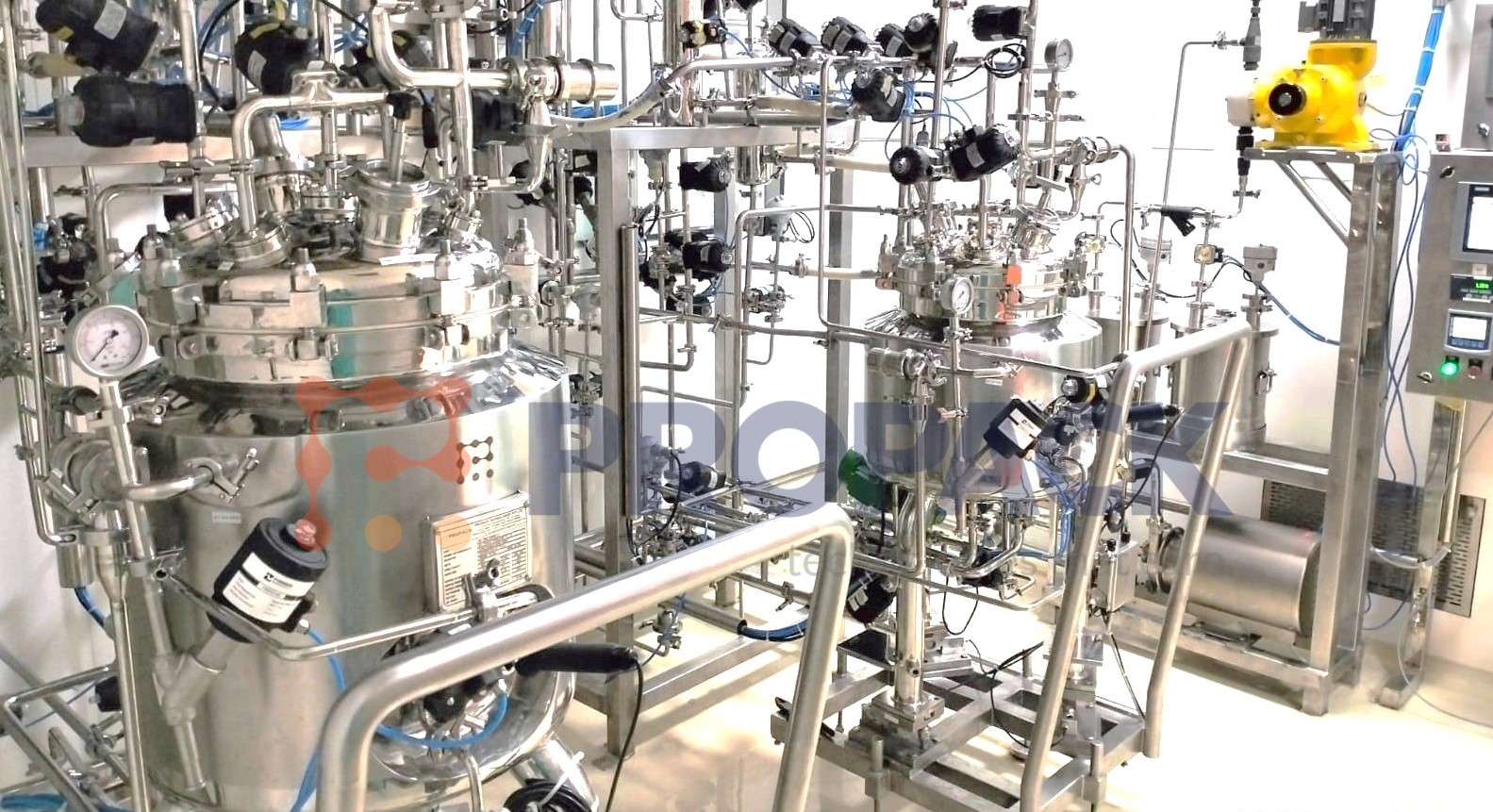

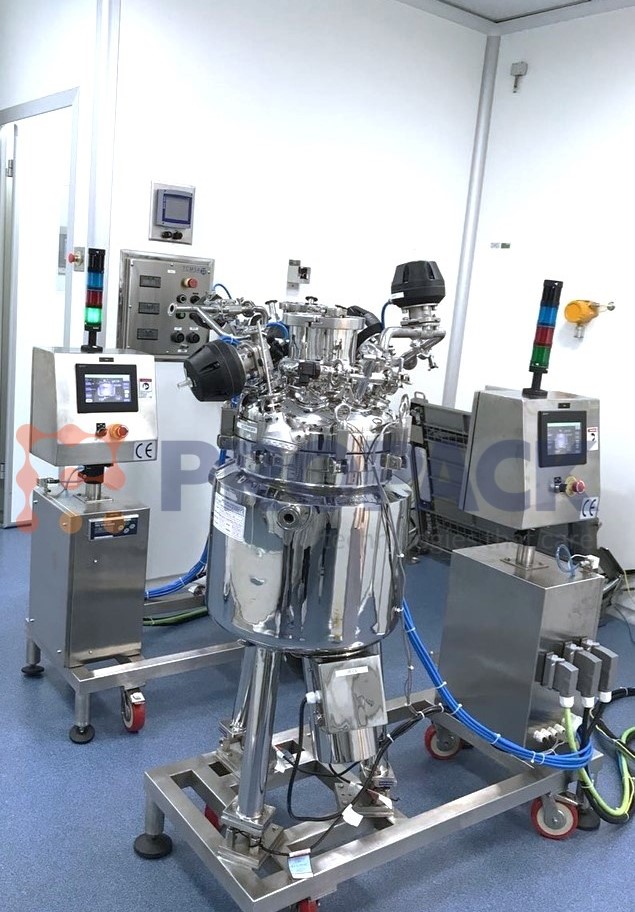

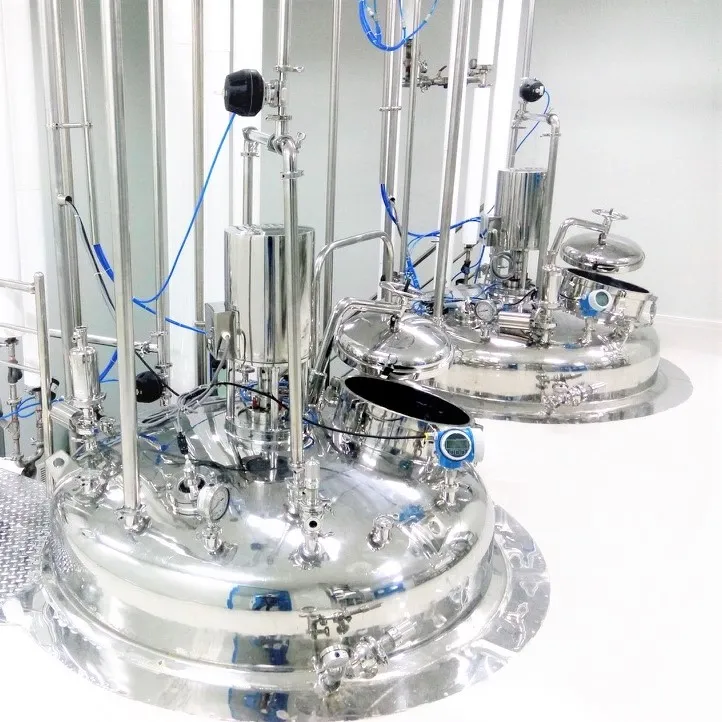

A standard sterile aseptic manufacturing system comprises two vessels, although the systems might vary considerably according to individual needs. Complete isolation from contamination remains the primary consideration in IV Fluids Manufacturing Plant. Each vessel is therefore designed in accordance with cGAMP and ASME BPE guidelines. The vessels can be customized to include magnetic mixers based on product requirements. Additionally, various sensors such as pH sensors, DO sensors, Conductivity sensors, Level sensors, and charting devices can be integrated into the IV fluids manufacturing machine as needed.

The operations of centrifugal pumps, pneumatically operated valves (in the case of automated operation), and mixers are carried out through the main control panel. This panel, constructed from SS304 grade material, features various safety lock systems, including Emergency Stop and Mains Supply Indicators, ensuring safe work practices and extended component life. The vessels are interconnected via pipelines manufactured in accordance with cGMP norms and connected using sealed tri-clamp connections.

Features of IV Fluids Manufacturing Plant :

1. Uniform ingredient dispersion
2. No wall caking
3. Entire plant operation by one operator and one helper
4. Efficient heat transfer in the vessels
5. Particle size reduction less than 5 microns
6. Reduced batch processing time
7. Reduced change over time
8. Consistent product composition across different batches

1. All contact parts made of SS316L and non-contact parts made of SS304 grade material
2. Food grade silicone gaskets
3. Vessel design as per ASME guidelines
4. Torispherical, Hemispherical and Conical dish top customization availability
5. Hydraulic lid lifting arrangement for occasional cleaning
6. Static & Dynamic spray ball availability
7. VFD for motor rpm controls
